Forged Piston
MPK 04


LIMITING CONDITIONS (according to ISO 6552)
Rating ANSI 600
Max. allowable pressure 100 bar
Max. allowable temperature 280°C

Connections:

RUN CONNECTIONS
No. 2
Size (H) 1.1/2”
Type SW (acc. to ANSI B16.11)

BRANCH CONNECTIONS
No. 4
Size (B) ½” – ¾”
Type SW (acc. to ANSI B16.11)
        NPT(acc. To ANSI B1.20.1)
        BSP (acc. To BS21)

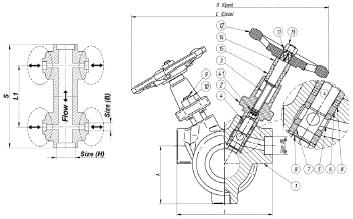

POS.
 DESCIPTION MATERIALS SPARES
1 Body ASTM A105 N
2 Bonnet ASTM A105 N
3 Stem ASTM A182 F6
4 Piston Ø12mm ASTM F304 X
4.1 Seeger S.S. 304 X
5 Lantern ASTM A105 X
6 Valve ring above GRAPHITE X
7 Valve ring below GRAPHITE / Stainless steel X
8 Grain S.S. 304 X
9 Stud ASTM A193 B7
10 Nut ASTM A194 2H
11 Washer Carbon steel
12 Handwheel ASTM A105
13 Handwheel nut ASTM A193 B7
14 Close green indicator Rubber X
15 Open red indicator Rubber X
