| Cast Steel Flow Indicators |
|
|
|
| |
|
|
|
| |
|
| LIMITING
CONDITIONS (according to ISO 6552) |
| Acc. to the body rating DIN PN 25 up to 4 " DIN PN16
for 6- 8 |
| GLASS CONDITION |
| MAX. WORK TEMPERATURE |
| Tempered glass |
180°C |
| Borosilicate glass |
300°C | |
|
| Connections: |
Flanged ANSI B16.5
150#/300# / UNI / DIN / PN 16/25/40 |
|
|
|
|
| Size (Inches) |
2" |
3" |
4" |
6" |
8" |
| D |
80 |
110 |
135 |
200 |
250 |
| C |
15 |
20 |
25 |
25 |
25 |
| Weight ( Kg ) |
10.5 |
20 |
26.5 |
68 |
125 |
| (SF) ANSI-UNI-DIN |
230 |
310 |
350 |
480 |
600 |
|
|
| |
|

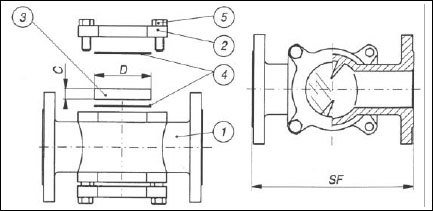

POS. |
DESCIPTION |
MATERIALS |
SPARES |
| 1 |
Body |
ASTM A351 CF8M |
| 2 |
Flange |
ASTM A351 CF8M |
| 3 |
Glass |
TEMPERED |
X |
| 4 |
Gasket |
CAF |
X |
| 5 |
Bolt |
ASTM A193 B8 |
(3) Borosilicate acc. to DIN7080 , on request
(4) C.A.F. : Compressed Aramidic Fibre |
|
|
| |
|
|
|
|
|
|
|
|
|
