    Douglas Italia fabricated Simplex ( basket ) strainers have been specifically designed to meet all customer requirements including for high pressure applications.Designed and fabricated to ASME VIII Div.1 as standard but can also be supplied to other pressure vessel codes. I.e. ASME B31.3 etc. Standard features include low pressure drops at high velocities, stainless steel perforated baskets as standard, vents and drains with the possibility to supply davit lifts, quick open closures, DP gauges.We are also able to manufacture againstcustomer requests in all types of materials.

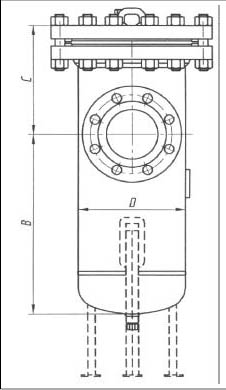

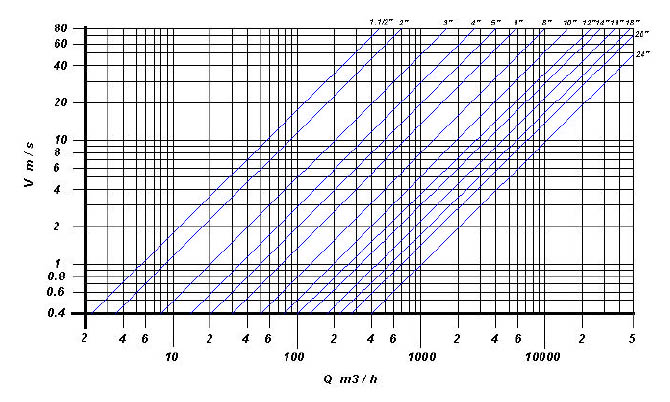

Size 2 3 4 5 6 8 10 12 14 16 18 20 24
S 356 356 381 406 445 553 584 838 914 965 1092 1092 1130 1264
B 305 305 318 356 381 432 533 635 711 838 914 991 1118 1524
C 229 229 229 241 279 279 318 368 406 445 508 508 610 610
D 168 168 168 219 273 273 324 406 457 508 610 610 762 762
Kg 69.2 72.6 79.4 131.5 181.4 192.8 274.4 464.9 603.3 757.5 1059.1 1115.8 1537.7 1780.4
NOTES : Inlet / Outlet flanges are according to ANSI B16.5

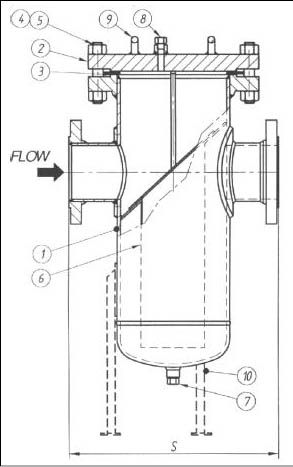

POS.
DESCIPTION MATERIALS NOTE
1 Body ASTM A106
2 Cover ASTM A105
3 Gasket 316 / GRAPHITE
4 Studs ASTM A193 B7
5 Nuts ASTM A194 2H
6 Screen Stainless steel
Perf. Plate Stainless steel
Mesh Stainless steel
7 Drain ASTM A105 Screwed ¾" NPT
8 Vent ASTM A105 Screwed ¾" NPT
9 Lifting eyes CARBON STEEL For cover only
10 Legs CARBON STEEL
