Cast Steel "Y" Type Strainers
C900 CF8M
STRAINERS
Designed to ANSI B16.34 the strainer bodies are produced with a superiorwallthickness for corrosion allowance.Standard stainers are equipped with screens for the average service of mostmediums ( steam, gas, air, oil, chemicals , ect. )


LIMITING CONDITIONS (according to ISO 6552)
According to the body rating ( ANSI B16.34 )
C900" ANSI 900
OTHER RATINGS ON REQUEST

Sizes: 2"3"4"6"8"10"12


Connections: Buttweld ANSI B16.25
Flanged ANSI B 16.5

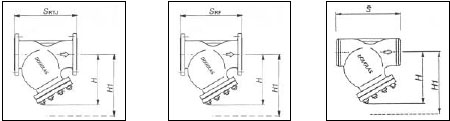

Size (Inches) 2 3 4 6 8 10 12
SRTJ
371 384 460 613 740 841 968
SRF
368 381 457 610 737 838 965
S
368 381 457 610 737 838 965
H
250 295 375 555 665 650 650
H1
400 320 435 630 780 890 976
Kg
55 83 155 261 600 1494 1750
STANDARD PERFORATIONS 1.5 mmSPECIAL PERFORATIONS ON REQUEST. DRAIN PLUG SIZE ¾ Dimension : SRF , S , H, H1 are in millimeters ( mm)




All strainers should be mounted as close as possible to the valve or machinery which they are being installed to protect. It is important to ensure that the strainer installed with the flow following the same direction as the flow direction arrow cast onto the strainer body. ,For mounting in horizontal or inclined pipelines, ensure that the screen housing is always mounted below the pipeline. ,œ Y œ " strainers should never be installed in vertical pipelines in the upward flow condition. ( see above )



POS.
DESCIPTION MATERIALS SPARES
1 Body ASTM A351 CF8M
2 Screen S.S. 316 X
3 Cover ASTM A240 316
4 Gasket RJ F316 X
5 Drain plug AISI 316
6 Studs ASTM A193 B8
7 Nuts ASTM A194 Gr.8
OTHER MATERIALS ON REQUEST
