Cast Steel "Y" Type Strainers
C600 WCB
STRAINERS
Designed to ANSI B16.34 the strainer bodies are produced with a superiorwallthickness for corrosion allowance.Standard stainers are equipped with screens for the average service of mostmediums ( steam, gas, air, oil, chemicals , ect. )


LIMITING CONDITIONS (according to ISO 6552)
According to the body rating ( ANSI B16.34 )
C600" ANSI 600
OTHER RATINGS ON REQUEST

Sizes: 2"3"4"6"8"10"12"14"16

Connections: Buttweld ANSI B16.25
Flanged ANSI B 16.5

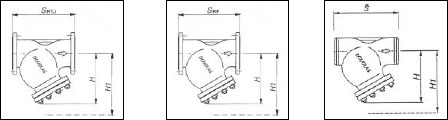

Size (In) 2 3 4 6 8 10 12 14 16
SRTJ
295 259 435 562 663 790 841 892 994
SRF
292 356 432 559 660 787 838 889 991
S
292 356 432 559 660 787 838 889 991
H
193 260 310 400 500 600 720 865 1180
H1
270 320 400 530 650 790 1200 1420 1520
Kg
35 60 95 230 400 590 700 770 1140
STANDARD PERFORATIONS 1.5 mm SPECIAL PERFORATIONS ON REQUEST . DRAIN PLUG SIZE ¾ Dimension : SRF , S ,H , H1 are in millimeters ( mm)




All strainers should be mounted as close as possible to the valve or machinery which they are being installed to protect. It is important to ensure that the strainer installed with the flow following the same direction as the flow direction arrow cast onto the strainer body. ,For mounting in horizontal or inclined pipelines, ensure that the screen housing is always mounted below the pipeline. ,œ Y œ " strainers should never be installed in vertical pipelines in the upward flow condition. ( see above )



POS.
DESCIPTION MATERIALS SPARES
1 Body ASTM A216 WCB
2 Screen S.S. 304 X
3 Cover ASTM A105
4 Gasket 316 / GRAPHITE X
5 Drain plug ASTM A105
6 Studs ASTM A193 B7
7 Nuts ASTM A194 2H
OTHER MATERIALS ON REQUEST
