Cast Steel "Y" Type Strainers
C150 CF8M
STRAINERS
Designed to ANSI B16.34 the strainer bodies are produced with a superiorwallthickness for corrosion allowance.Standard stainers are equipped with screens for the average service of mostmediums ( steam, gas, air, oil, chemicals , ect. )


LIMITING CONDITIONS (according to ISO 6552)
According to the body rating ( ANSI B16.34 )
C150 " ANSI 150
OTHER RATINGS ON REQUEST

Sizes: 2"3"4"6"8"10"12"14"16"18"20"24

Connections: Buttweld ANSI B16.25
Flanged ANSI B 16.5

Size (In) 2346810121416182024
SRF
2032412924064956226997889149789781295
S
2032412924064956226997889149789781295
H
14021027036046057070077087097510951300
H1
19026034040058066080012001400153017502040
Kg
142640681401902703506407008951370

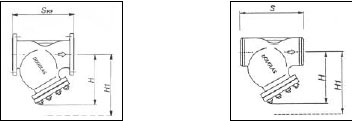

STANDARD PERFORATIONS 1.5 mm SPECIAL PERFORATIONS ON REQUEST . DRAIN PLUG SIZE ¾ Dimension : SRF , S ,H , H1 are in millimeters ( mm)




All strainers should be mounted as close as possible to the valve or machinery which they are being installed to protect. It is important to ensure that the strainer installed with the flow following the same direction as the flow direction arrow cast onto the strainer body. ,For mounting in horizontal or inclined pipelines, ensure that the screen housing is always mounted below the pipeline. ,œ Y œ " strainers should never be installed in vertical pipelines in the upward flow condition. ( see above )



POS.
DESCIPTION MATERIALS SPARES
1BodyASTM A351 CF8M
2ScreenS.S. 316X
3CoverASTM A240 316
4Gasket316 / GRAPHITEX
5Drain plugAISI 316
6StudsASTM A193 B8
7NutsASTM A194 Gr.8
OTHER MATERIALS ON REQUEST
