Cast Steel "Y" Type Strainers
C1500 WCB PRESSURE SEAL
STRAINERS
Designed to ANSI B16.34 the strainer bodies are produced with a superiorwallthickness for corrosion allowance.Standard stainers are equipped with screens for the average service of mostmediums ( steam, gas, air, oil, chemicals , ect. )


LIMITING CONDITIONS (according to ISO 6552)
According to the body rating ( ANSI B16.34 )
C1500 " ANSI 1500
OTHER RATINGS ON REQUEST

Sizes: 10 " 12 " 14 " 16

Connections: Buttweld ANSI B16.25
Flanged ANSI B 16.5

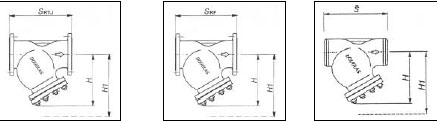

Size
10 12 14 16
SRTJ
1000 1146 1276 1407
SRF
991 1130 1257 1384
S
864 991 1067 1194
H
700 800 970 1150
H1
1100 1300 1500 1700
1200
1200 1500 2320 2750
STANDARD PERFORATIONS 1.5 mm SPECIAL PERFORATIONS ON REQUEST. DRAIN PLUG SIZE ¾ Dimension : SRF , S , H, H1 are in millimeters ( mm)




All strainers should be mounted as close as possible to the valve or machinery which they are being installed to protect. It is important to ensure that the strainer installed with the flow following the same direction as the flow direction arrow cast onto the strainer body. ,For mounting in horizontal or inclined pipelines, ensure that the screen housing is always mounted below the pipeline. ,œ Y œ " strainers should never be installed in vertical pipelines in the upward flow condition. ( see above )



POS.
DESCIPTION MATERIALS SPARES
1 Body ASTM A216 WCB
2 Screen S.S. 304 X
3 Gasket S.S. 304 X
4 Drain plug A105
5 Nuts ASTM A194 2H
6 Studs ASTM A193 B7
7 Sleeve ASTM A105
8 Cover ASTM A105
9 Ring ASTM A182 F6
10 Retain ring ASTM A182 F6
OTHER MATERIALS ON REQUEST
