Cast Steel "Y" Type Strainers
C1500 WCB
STRAINERS
Designed to ANSI B16.34 the strainer bodies are produced with a superiorwallthickness for corrosion allowance.Standard stainers are equipped with screens for the average service of mostmediums ( steam, gas, air, oil, chemicals , ect. )


LIMITING CONDITIONS (according to ISO 6552)
According to the body rating ( ANSI B16.34 )
C1500 " ANSI 1500
OTHER RATINGS ON REQUEST

Sizes: 2"3"4"6"8

Connections: Buttweld ANSI B16.25
Flanged ANSI B 16.5

>

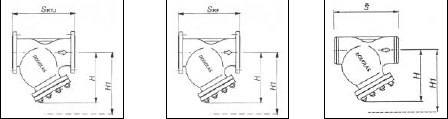

Size (Inches)
2 3 4 6 8
SRTJ
371 473 549 711.5 842
SRF
368 470 546 705 832
S
368 470 546 705 832
H
250 325 375 480 620
H1
400 540 600 750 900
Kg
60 100 160 400 600
STANDARD PERFORATIONS 1.5 mmSPECIAL PERFORATIONS ON REQUEST. DRAIN PLUG SIZE ¾ Dimension : SRF , S , H




All strainers should be mounted as close as possible to the valve or machinery which they are being installed to protect. It is important to ensure that the strainer installed with the flow following the same direction as the flow direction arrow cast onto the strainer body. ,For mounting in horizontal or inclined pipelines, ensure that the screen housing is always mounted below the pipeline. ,œ Y œ " strainers should never be installed in vertical pipelines in the upward flow condition. ( see above )



POS.
DESCIPTION MATERIALS SPARES
1 Body ASTM A216 WCB
2 Screen S.S. 304 X
3 Cover ASTM A105
4 Gasket RJ ARMCO X
5 Drain plug ASTM A105
6 Studs ASTM A193 B7
7 Nuts ASTM A194 2H
OTHER MATERIALS ON REQUEST
